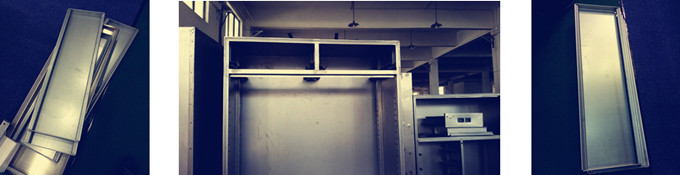

File cabinets, electrical cabinet panels






文件柜,电器柜面板,冲剪折加工中心

File cabinets, electrical cabinet panels
生产工艺Process Flow:
开卷放料—校平—伺服送料—冲孔系统—切断—双边滚压成型—自动折弯系统—收料台

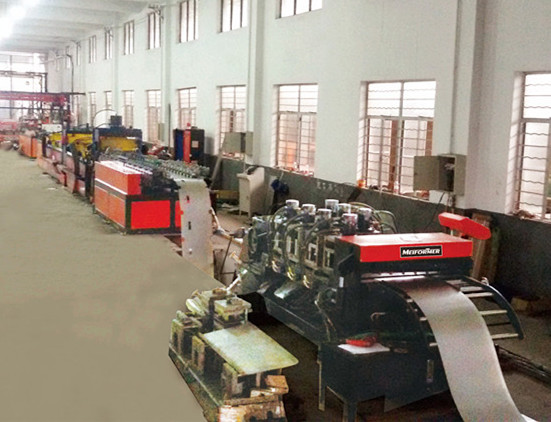

Decoiler—Leveler—Servo Feeding System—Punching—Double Driven Roll Forming Device—Auto Folding System—Run Out Table

设备组成Machine Components:
设备由放料机、校平机、伺服送料、冲孔系统、切断一体机、双机联动成型主机、自动折弯系统、收料台、PLC电器控制部分等组成。
This line consists of Decoiler、Leveler、Servo Feeding System、Punching System、Double Driven Roll Forming Device、Auto Folding System、Run Out Table、PLC Control System etc.

设备结构概述Machine Structure Summary:
本生产线可生产不同规格的各种面板,集合了数控控制完成冲、剪、折工序,大大节约人工,提高工作效率。
This line can produce different sizes of cabinet panels.
NC control is used on this line to complete punching, cutting and folding processes.
Greatly save labor, material and improve efficiency.

可作为传统数控冲床,数控折弯机,数控剪板机的有力补充。
This line can be used for supplementary equipment for traditional NC punching, NC folding and NC cutting.
不同规格通过数控设定完成。Different sizes of products can be set by NC.
如需要冲不同的孔,可通过更换冲模完成。If want to punch different sizes of holes, just change the punching moulds.
辊弯机采用双机联动组合可调式。Roll forming main machine adopts double driven,combination and adjustable type.
