TDF/TDC wrap machine

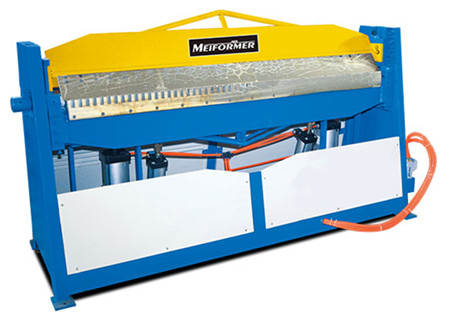

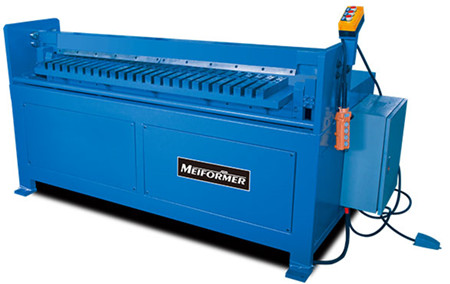

Hydraulic &air drive TDF/TDC wrap machine

MEIFORMER TDC/TDF wrap brake is a hydraulic drive bending machine.The TDC wrap brake has a slotted bed and solid top forming beam.It is designed to form an L-section or wrap(one-piece)TDC/TDF duct.The TDC/TDF notch lacator positon the duct in the proper bending location for forming.This allows one one-person operation.The machine is also designed to form various length fitting with a TDC flange and pittsburgh or SNAP lock seam.


型号

MHB-1.2×1500

MHB-1.2×2000

最大折边厚度 Thickness(mm)

1.2

1.2

最大折边长度Max. Lengthmm

1500

1200

型风管最小尺寸 Min. Sizemm

200×200

200×200

电机功率 Power (Kw)

4

4

液压油贮量 Hydraulic oil storageL

80

80

重量 Weight(Kg)

1200

1500

外形尺寸 Dimension (mm)

1900×700×900

2500×700×900




型号

MAF-1.2×1500

MAF-1.2×2000

最大折边厚度 Thickness mm

1.2

1.2

最大折边长度 Max. Lengthmm

1500

2000

重量 WeightKg

1200

1500

外形尺寸 Dimensionmm

1900×700×900

2500×700×900
