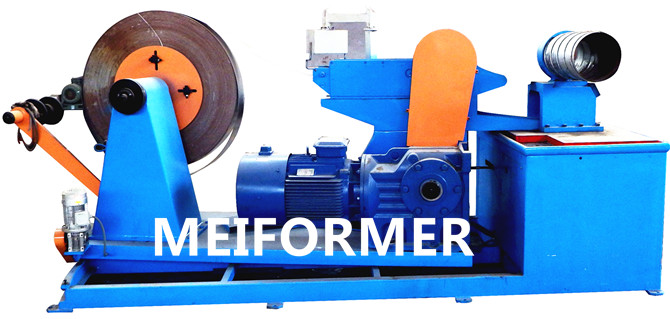

Spiral Tubeformer (Tool Model) 2000




Spiral Tubeformer (Tool Model) Spiral tubeformer also called spiral machine, by forming the mold design, molding to ensure standardization, easy to install. Formed to ensure efficient high-quality sealing seams and high-quality sealing seams and high strength. Replacement of mold and easy operation, fast. Cutting Size can choice Roller shear, Plasma Cutting or saw cutting.

Model

MDL-2-2000(合体,料卷与机器在一起)

Tube Diameter

Ф100-Ф2000mm

Material width

137mm (0.5-1.2mm) and 155mm (1.3-2.0mm)

Material thickness

galvanized steel:0.5-2.0mm

Stainless steel:0.5-1.2mm

Decoiler

inner coil: Ф460-520mm

Max. loading:1200kg

The decoiler is drove by a miniature motor on the slide to adjust feeding angle .

Seam lock

the surface of  ducts

Feeding speed

0-25m/min,adjustable

Cutter

Roller shear and plasma cutting

Driven System

Cutting and turning flange adopt air-power

Compaction of feed rolls adopts hydraulic power

Mould

Steel

Total weight

2200kg

Diameter

Main machine3400x1900x1800 mm

Run out table:2100x1200x1100m m

Power:

Total power 23KW.

main motor:22kw,

Hydraulic motor:0.75kw,

Seam locking wheel motor:0.12kw

Electrical source:

380V/50Hz/3ph (or by customer requirement.)

Cut-to-length:

Infrared sensor

Console

Touch screen and push buttons panel
